產品介紹Product introduction：
LS-2B采用國際上先進的振動式通道下料，振蕩器無極調速，觸摸屏PLC智能控制，光纖感測頭計數、系統自檢、故障指示報警、自動停機等先進技術，機身采用全不銹鋼材質，按GMP標準設計，是集光電機一體化的高科技藥品計數設備。

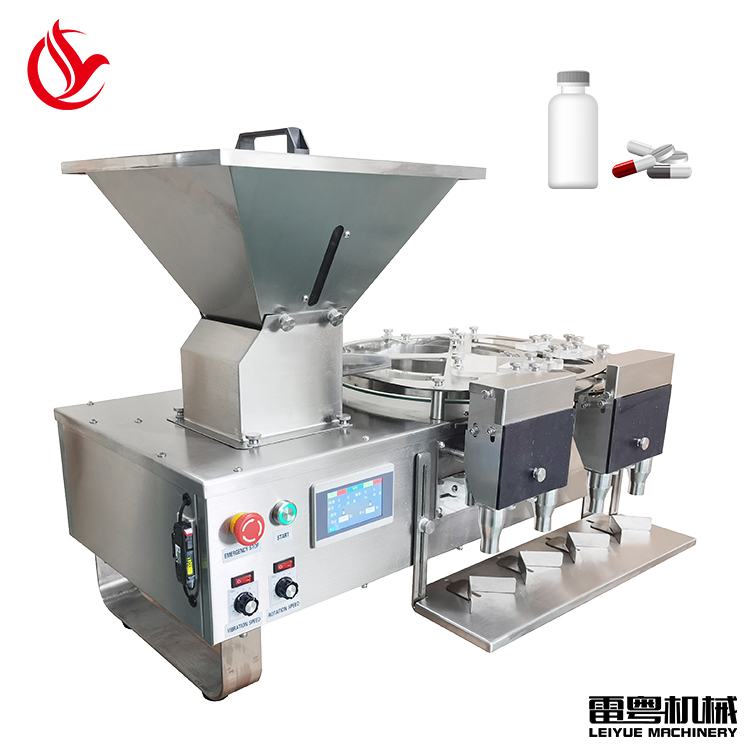

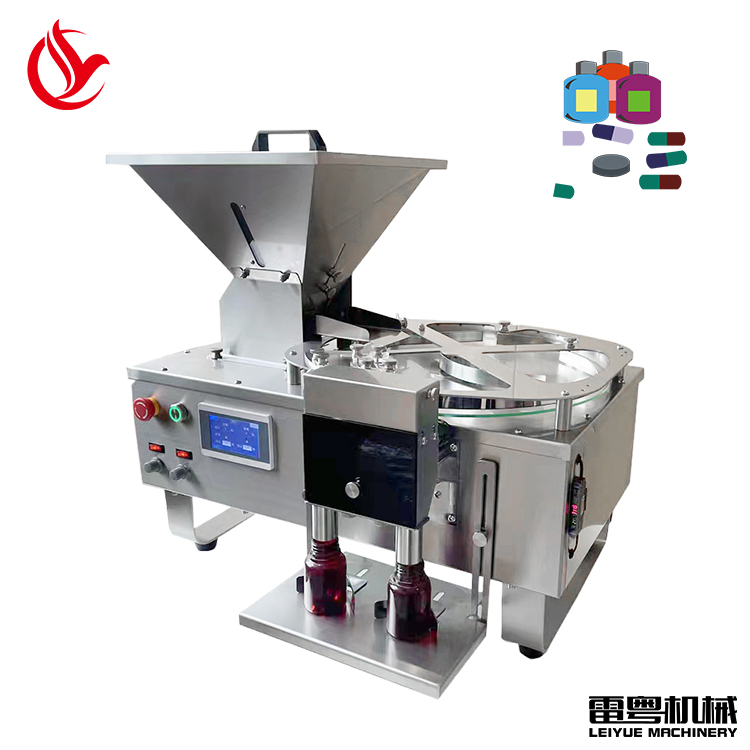

LS-2B Electronic counting machine adoptsinternationally advanced advanced technologies such as vibrating channelblanking, oscillator stepless speed regulation, touch screen PLC intelligentcontrol, fiber optic sensor counting, system self inspection, fault indicationalarm, automatic shutdown, etc. the body is made of all stainless steel anddesigned according to GMP standards. It is a high-tech drug counting equipmentintegrating optics and motors.
本機屬于準桌面型數粒設備，設計合理，結構緊湊，使用方便，數粒效率高，可廣泛應用于多種不同形狀、大小的片劑、膠囊、丸劑、透明軟膠囊等藥品的快速計數裝瓶，計數裝瓶精度達到國內外同類產品先進水平。
This machine belongs to the quasi desktoptype counting device with reasonable design and compact structure. The machineis easy to operate and high-efficiency, which can be widely used in a varietyof different shapes and size tablets, capsules, pills, transparent softcapsules and other drugs counting .The counting accuracy reach advanced levelsin the world.
產品特點Product features：
1、振動式下料，可調節振動頻率，防止阻塞。出料均勻，篩網過濾粉塵。
2、觸摸屏PLC控制，可自由設定裝瓶粒數，設定灌裝瓶數。
3、光纖紅外感應計數，光敏度可調節。
4、紅外感應故障自檢，檢測不到物料，停機警報。
5、導軌可調節，5-25mm尺寸形狀規則的產品可自動計數。
1. Vibrating blanking, vibration frequencycan be adjusted to prevent blocking. The discharge is uniform, and the dust isfiltered by the screen.
2. Touch screen PLC control, can freely setthe number of bottles, set the number of bottles.
3. Optical fiber infrared inductioncounting, photosensitivity adjustable.
4. Infrared induction fault self-test, nomaterial detected, shutdown alarm.
5. The guide rail can be adjusted, andproducts with regular size and shape of 5-25mm can be counted automatically.
技術參數technical parameter：
型號 Model | LS-2B |
速度 Speed | 600-2000粒/分鐘（ pcs/min） |
適用范圍 Application | 硬膠囊，軟膠囊，藥片，藥丸等 Hard capsules, soft capsules, tablets, pills, etc. |
控制方式 Control device | 觸摸屏控制 Touch screen |
計數方式 Counting method | 紅外探測 Infrared induction |
適用尺寸 Suitable size | 膠囊型號000#-5# / 片劑直徑5-25MM Capsule model 00 # -5 # / tablet diameter 5-25mm |
計數誤差 Counting error | ±0.3% |
電源電壓 Voltage | 220V/50-60Hz /100W |
凈重 Weight | 50kg |
外型尺寸 Overall dimension | 735X580X720mm |
機器材質 Machine material | SUS304(0Cr18Ni9） |
